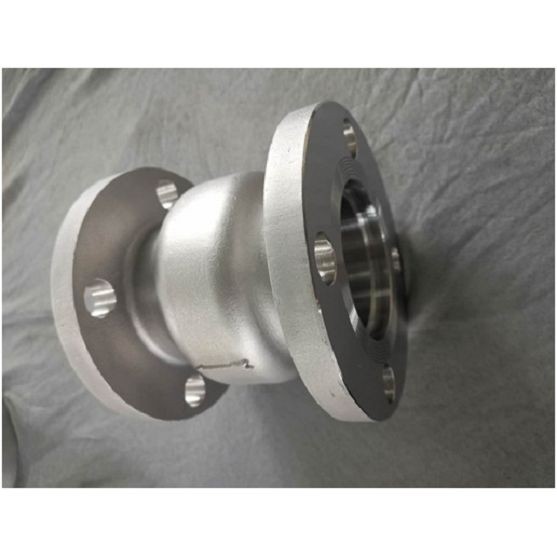

Valve Body Castings

Process

Lost wax casting + cnc machining

Casting dimension tolerance

CT7

Casting surface roughness

Ra 12.5um

Casting weight range

0.1-90kg

Casting Size

Max linear size: 1200mm, Max diameter size: 600mm

Machining Precision

0.008mm，0.006mm。，。

Machining surface roughness

Ra0.8~6.3um

Max Travel Of Spindle

1800mmx850mmx700mm

Max Turning Diameter

1000mm

Material standard

GB, ASTM, AISI, DIN, BS, JIS, NF, AS, AAR.......

Surface treatment

There are several effective methods for coating and plating metal surfaces, such as KTL (E-coating), Zinc plating, and Nickel plating. For a smooth and polished finish, Mirror Polishing is an excellent option, while Sand Blasting and Acid pickling can remove any roughness or impurities. If you prefer a darker finish, black oxide is a great choice, or you can add a pop of color with Painting or Powder coating. For durability and protection from corrosion, Hot galvanizing is a popular option. Each method can make your metal products look and perform at their best.

Service available

OEM & ODM

Application

The transportation industry encompasses various sectors such as train and railway operations, automobile and truck manufacturing, construction machinery usage, forklift operations, agricultural machinery production, shipbuilding activities, petroleum machinery usage, construction projects, valve and pump manufacturing, electric machine operations, hardware manufacturing, and power equipment usage. These industries play a vital role in ensuring efficient transportation and infrastructure development.

2. Casting weight percentage

0.1-5kg:40%

5-20kg:30%

20-40kg:20%

above 40kg:10%

3. Industry percentage

Components for train & railway: 25%

Components for automobile & truck: 30%

Construction machinery and forklifts require various components to function properly. Approximately 25% of these components are essential for their operation.
To ensure the smooth operation of construction machinery and forklifts, a wide range of components is necessary. These components make up around 25% of the overall machine structure. Without these crucial parts, the machinery would not be able to perform its intended functions effectively.
Some of the key components include engines, hydraulic systems, transmission systems, electrical systems, and control panels. The engines provide the necessary power to operate the machinery, while the hydraulic systems enable efficient lifting, pushing, and pulling of heavy loads. The transmission systems ensure smooth movement and precise control of the equipment.
Additionally, electrical systems and control panels play a vital role in operating and monitoring the machinery. They provide the necessary control signals and feedback to ensure safe and efficient operation. These components work together in harmony, ensuring the machine functions at its best.
Moreover, other essential components include tires, suspension systems, cabins, and safety features. Tires provide grip and stability on various terrains, while suspension systems enhance the machine's ability to handle rough surfaces. The cabin provides a comfortable working environment for the operators, ensuring their productivity and safety.
Furthermore, safety features such as seat belts, warning lights, and alarms are critical to prevent accidents and ensure the well-being of operators and those around the machinery. These components undergo rigorous quality control measures to meet industry standards and ensure reliable performance.
In conclusion, construction machinery and forklifts are complex machines that rely on a wide range of components for their operation. These components, which make up around 25% of the overall structure, are crucial for the smooth and efficient functioning of the machinery. From engines and hydraulic systems to electrical systems and safety features, each component plays a vital role in ensuring the reliability and performance of these machines.

Components for agricultural machinery: 10%

Other machinery compponents: 10%

4. Globa market share

United States:30%

Europe:35%

Japan& Korea:15%

Domestic market:15%

Other:5%

5. Production capacity

Production Capacity: 20,000 tons / year

The Current Production Output: 15,000 tons / year

Open Capacity Percentage: 25%
